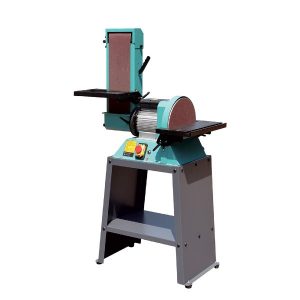

Belt and Disc Sander BDS-612

With the BDS-612 you can sand right to the line with precision and confidence. The precision ground cast iron belt and disc sanding tables each tilt from 0-45 degrees and are slotted for the included mitre gauge, additionally, the entire belt assembly pivots for vertical, horizontal, or angled sanding.

The large footprint, heavy duty base sits on rubber feet and makes for vibration free operation.

The sanding belt and the disc are shrouded for the optimum capture of dust, both have 40mm dust ports. Access to the sanding belt is quick because of a hinged swing away back cover and lever distension of the front roller makes for easy sanding belt exchange.

  • Self stick and velcro backed sanding disc are stocked
  • 150 x 1220 mm Hermes sanding belts from 40 grit to 180 grit are stocked
  • Built in 40mm dust ports



Specifications:

Sanding Belt size150 x 1220mm
Sanding Disc size305mm
Belt speed690m/min
Table size315 x 155mm
Disc Table size400 x 195mm
Motor power1 HP x 240 volt



Sand right to the line with precision and confidence.

As you approach the layout lines on your custom project, you want the confidence of strong, reliable machinery and precision components supporting your every move.

The SB1093 is the last word on belt/disc sanders, built to true South Bend high-precision industrial standards.

The precision-ground cast-iron belt and disc sanding tables each tilt from 0–45° and feature a slot for the included miter gauge.

Additionally, the entire belt assembly pivots for vertical, horizontal, or angled sanding—with machined detents for locking at 0, 45°, and 90°.

The large-footprint, heavy-duty one-piece cabinet steel base makes for vibration-free operation and houses the 1-1/2 HP TEFC motor and 4" dust port.

Price: $1,000.00
